Cabinet hinges · Push-open hinges for handle-less doors

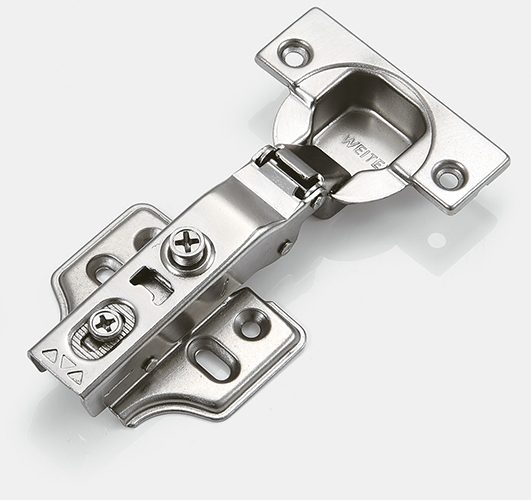

Push-open soft-close hinge, wide adjustment
Model 7551Handle-less
- Feature 1Press to open, no handle
- Feature 2105° opening
- Feature 316–28 mm doors
- Feature 43D adjustment ±2 / ±2 / ±4 mm
- Feature 5Pairs with 7550 self-locking push opener
Packing: 200 pcs / carton. Minimum order one carton per order number. 3 order numbers listed under Variants.
| Type | Push-open hinges for handle-less doors |
|---|---|
| Door thickness | 16–28 mm |
| Opening angle | 105° |
| Cup diameter / drilling | 35 mm |
| Cup depth | 12 mm |
| Overlay adjustment (side) | +2 / −2 mm |
| Height adjustment | +2 / −2 mm |
| Depth adjustment | +4 / −4 mm |
| Spring | 2-stage spring |
| Closing | Press to open; 2-stage soft close on closing |
| Mounting | Fixed mount (screw-on) |
| Material | Cold-rolled steel |
| Finish | Nickel plating |
| Included | Screws, arm cover |
Use with the 7550 or another self-locking push opener.
Sources: dealer price list 2026-04 and WEITE product catalogue. Rows marked [to confirm] are completed by WEITE before launch.
| Order number | Variant / size / colour |
|---|---|
| 7551 0107 | inset/thick & thin doors |
| 7551 0108 | half overlay/thick & thin doors |
| 7551 0109 | full overlay/thick & thin doors |
| Packing | 200 pcs / carton |
|---|---|
| Minimum order | One carton per order number |
| Carton size and weight | [to confirm] |
| Lead time | [to confirm] |
