Connectors, fittings and plinths.
Quick-fit dowel bolts and cam locks for flat-pack carcasses, hidden connectors, minimal shelf supports, floating-cabinet brackets, cable grommets, bed-storage casters, cabinet hangers, drawer locks, and the plinths and adjustable feet that finish a kitchen run.
4 types. Pick by the job.
Connectors & cam locks

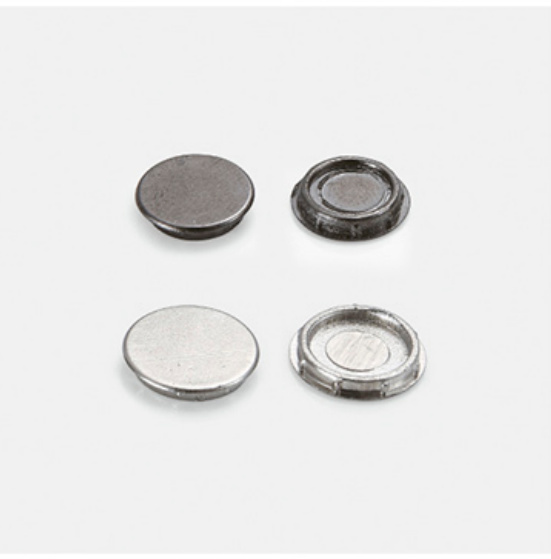

Quick-fit bolts in 32, 35 and 40 mm; zinc-alloy and manganese-steel cam locks in Ø10 and Ø12; cover caps.
Shelf supports
Minimal 5 mm shelf pins in gunmetal and hidden supports for shelves and slatted panels.
Brackets, casters & locks

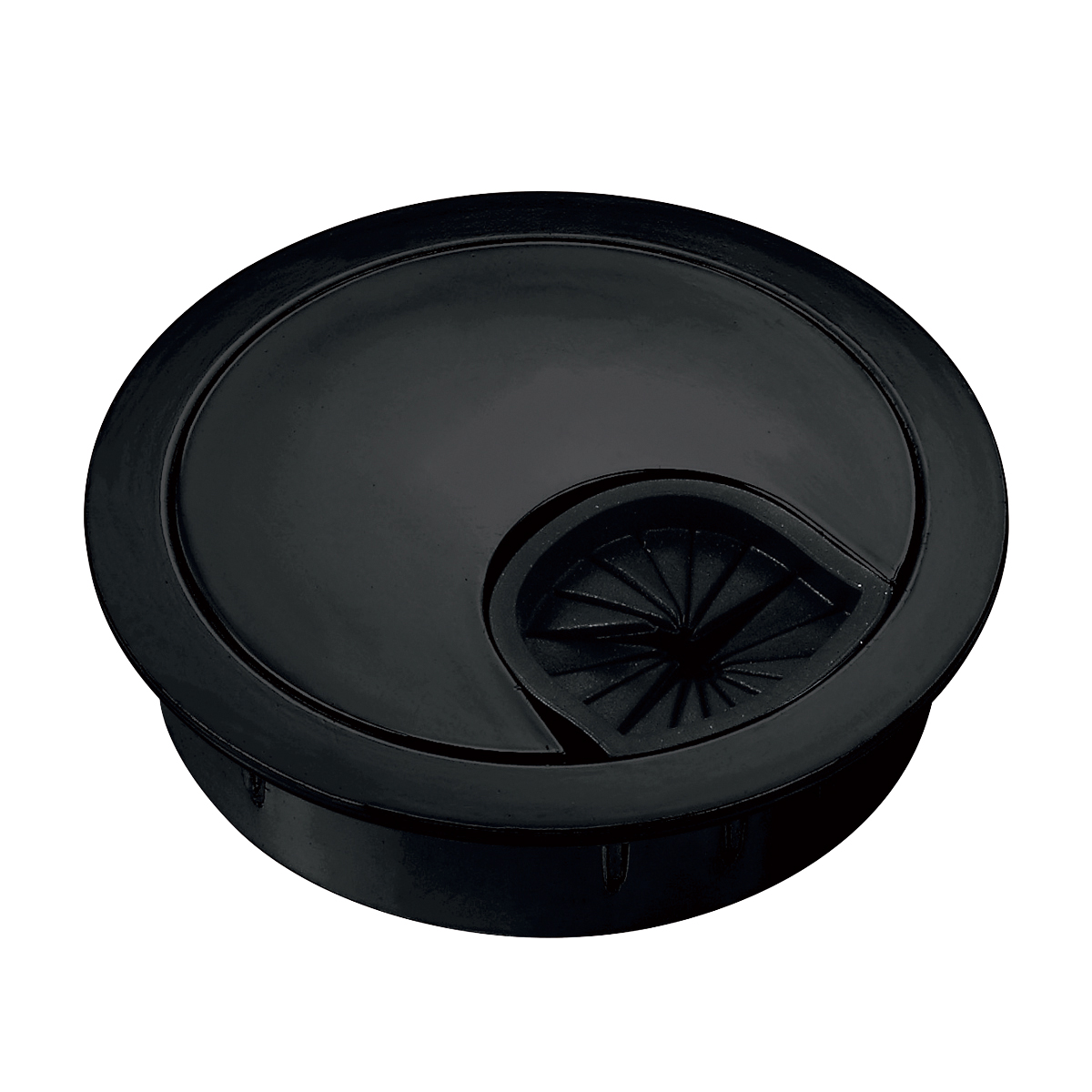

Floating-cabinet brackets, cable grommets, casters, hangers, drawer locks and seat fittings.
Plinths & adjustable feet

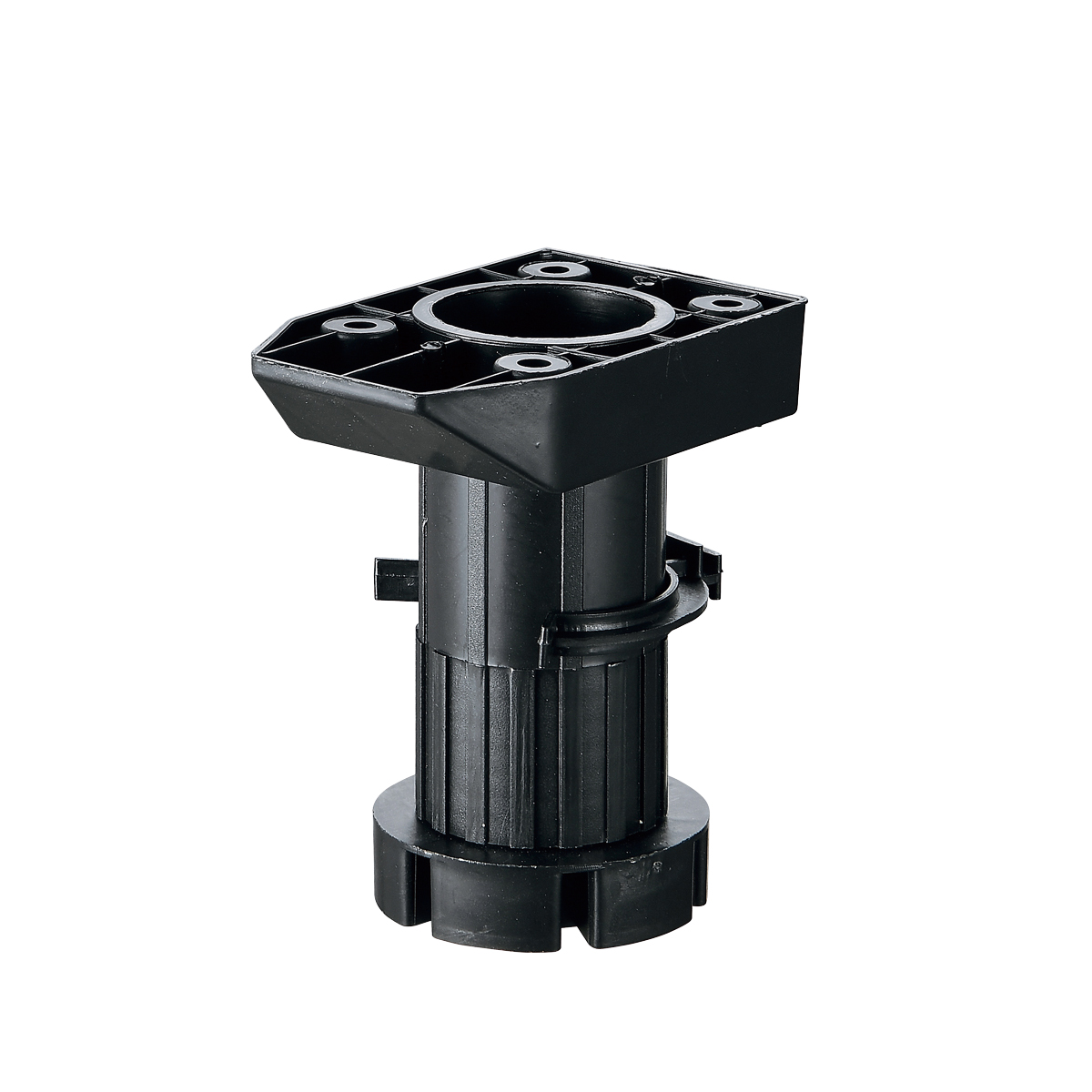

Lit curved plinth 5104, flat plinth 5105 and the 7524 adjustable foot, 100–150 mm.
Test figures from WEITE's own testing centre. Reports available with samples. About the factory ›
All 15 models.
Order number = model + variant suffix; every order number from the price list is listed on the model page.
Connectors & cam locks · 4 models
Quick-fit bolts in 32, 35 and 40 mm; zinc-alloy and manganese-steel cam locks in Ø10 and Ø12; cover caps.
- 32, 35 or 40 mm bolt
- M6 thread, pre-assembled
- 32, 35 or 40 mm
- Self-tapping thread
- Ø10 × 11.5 mm
- Manganese steel
- Ø12 × 12 mm
- Manganese steel
Shelf supports · 3 models
Minimal 5 mm shelf pins in gunmetal and hidden supports for shelves and slatted panels.
Brackets, casters & locks · 5 models
Floating-cabinet brackets, cable grommets, casters, hangers, drawer locks and seat fittings.
- 230 × 102, 320 × 102 or 450 × 80 mm
- Steel, black
- Ø50 or Ø60 mm
- Bright chrome, brushed or black
- 25, 32, 38 or 50 mm
- Swivel or fixed
- Short 19 × 22 mm cylinder
- Black or chrome
- Zinc alloy
- Panels 16–25 mm
Plinths & adjustable feet · 3 models
Lit curved plinth 5104, flat plinth 5105 and the 7524 adjustable foot, 100–150 mm.
Connectors and the parts around them.

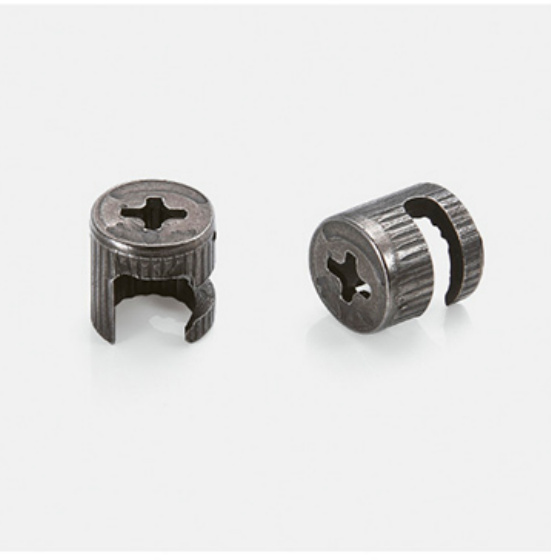

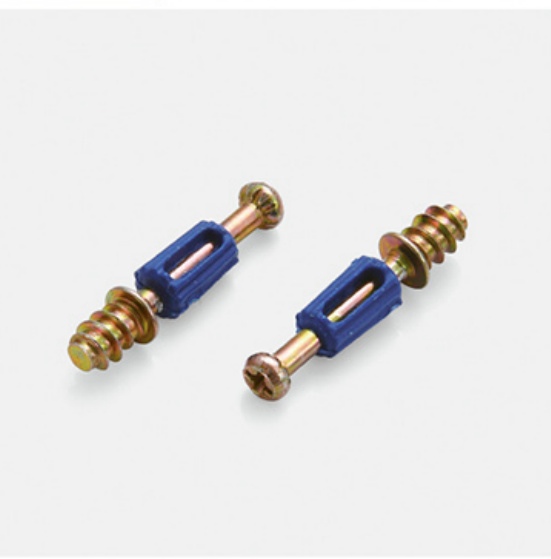

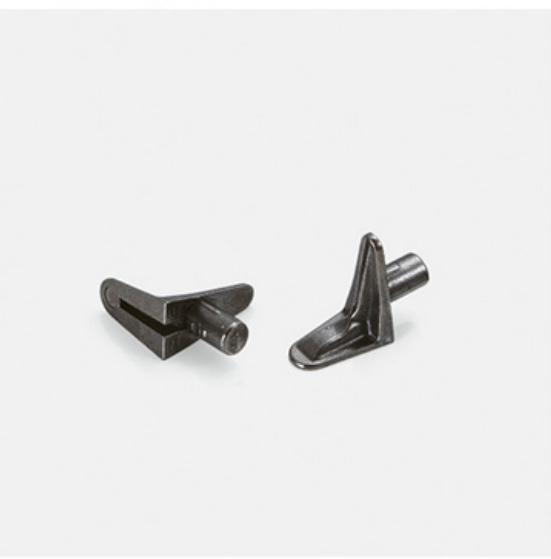

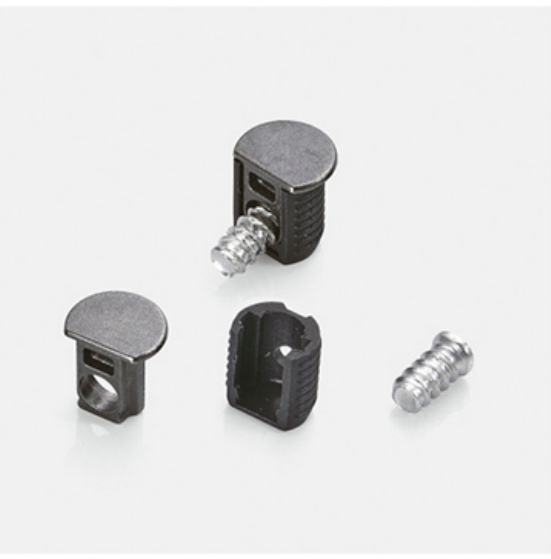

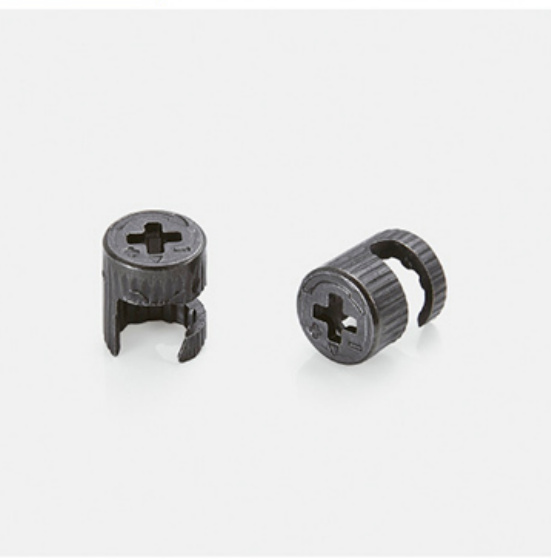

Flat-pack carcasses are held together by a bolt in one panel and a cam in the other. WEITE's 7039 and 7040 bolts come pre-assembled with a dowel or self-tapping thread in 32, 35 and 40 mm; the cams are manganese steel, Ø12 (7033) or Ø10 (7035), in a gunmetal finish. The 7047, 7048 and 7049 are minimal gunmetal pins for adjustable shelves. Floating vanities sit on 7518 L-brackets up to 450 mm deep. Kitchen runs finish with the 5105 flat plinth or the 5104 plinth with a built-in 4000 K light strip, both on 7524 feet adjustable from 100 to 150 mm.
Questions distributors ask.
Which cam lock fits which bolt?
The Ø12 cam 7033 and the Ø10 cam 7035 both take the 7039 and 7040 bolts; the bolt length 32, 35 or 40 mm is chosen by panel thickness and hole distance.
Are the connectors sold loose?
No, in bags of 500 or 1000 with 8 to 100 bags per carton, one carton per item minimum.
Does the lit plinth need a driver?
Yes. The 5104 plinth strip runs on a 24 W driver from the lighting family, such as the 7590 or 7600.
How is the plinth cut?
Both plinths come in 3 m lengths and are cut on site; the 5104 has inline and corner connectors in matching colours.
What is the minimum order?
One carton per item; plinths and feet are ordered per length or per piece.
