Lift-up systems.
Folding damped stays for small flaps, the 7532 mechanism for full-size wall-cabinet doors, free-stop stays and gas springs, and damped stays for ottoman beds and storage benches.
Test figures from WEITE's own testing centre. Reports available with samples. About the factory ›
All 11 models.
Order number = model + variant suffix; every order number from the price list is listed on the model page. Cards marked [PHOTO TO ADD] have no studio photo yet.
Lift-up & flap stays · 8 models
Folding damped stays, free-stop stays, gas springs and the 7532 lift-up mechanism for wall cabinets.
- 50–70 N
- Doors 150–300 mm high
- 50–70 N
- Soft opening, no noise

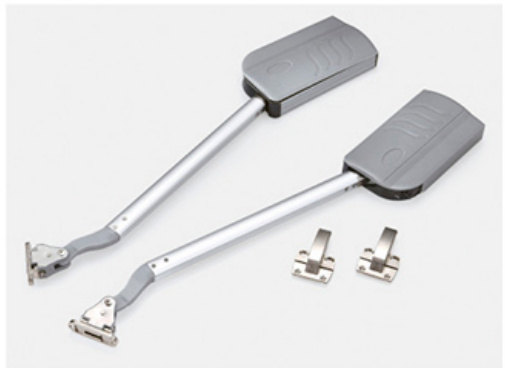

- Bi-fold doors, 7.1–8 kg
- Cabinet height 700–1000 mm
- Torque 1200–4000 kg·cm
- Doors 330–500 mm high, 600–1200 mm wide
- 80 N
- Opens to 105°, stops at any angle
- 100 N
- Doors up to 3.2 kg
- 100 N
- Doors up to 3.2 kg
- 100 N
- Doors up to 3.2 kg
Bed-storage stays · 3 models
Damped stays for ottoman beds and storage benches, front or side mount.
Choosing a lift-up stay.

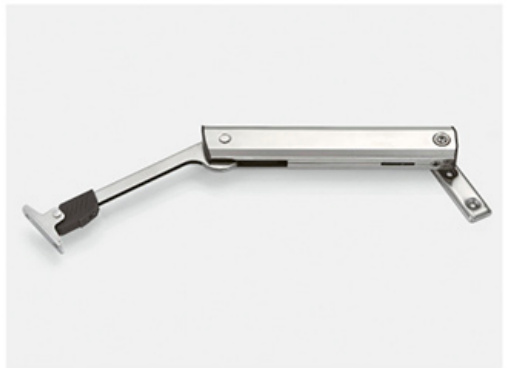

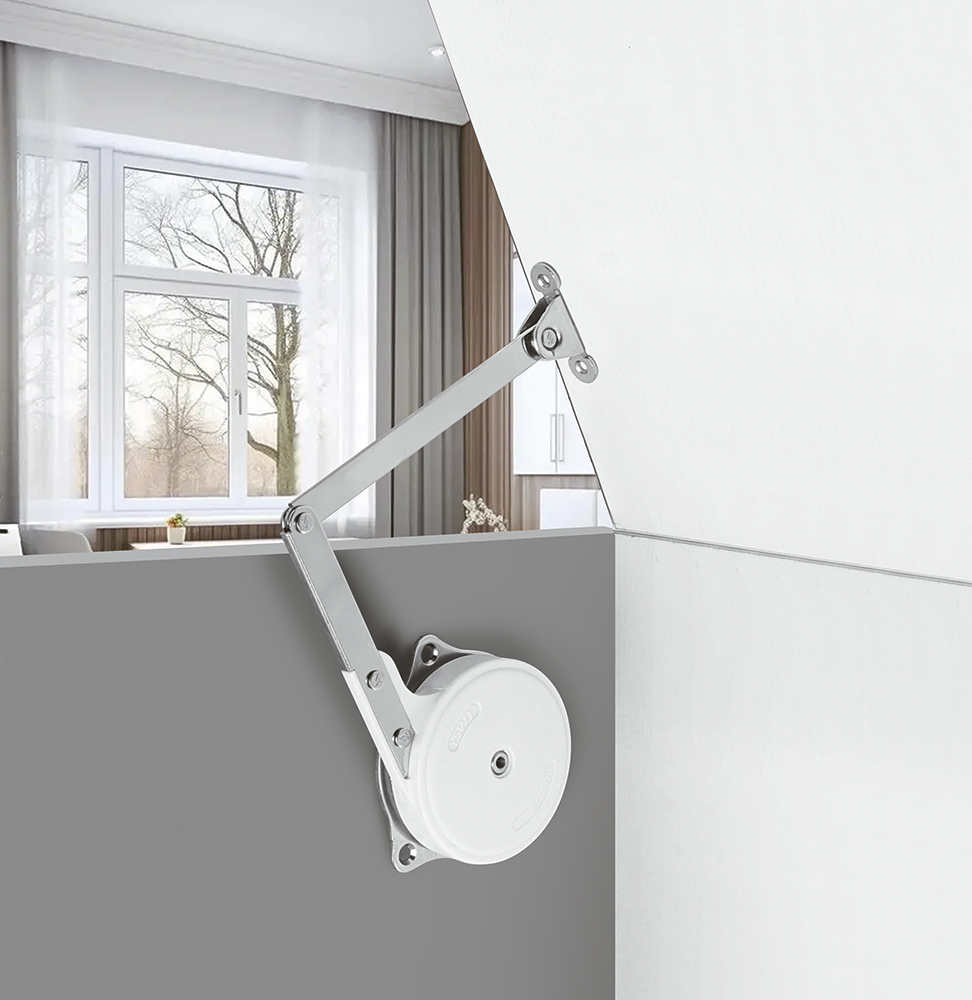

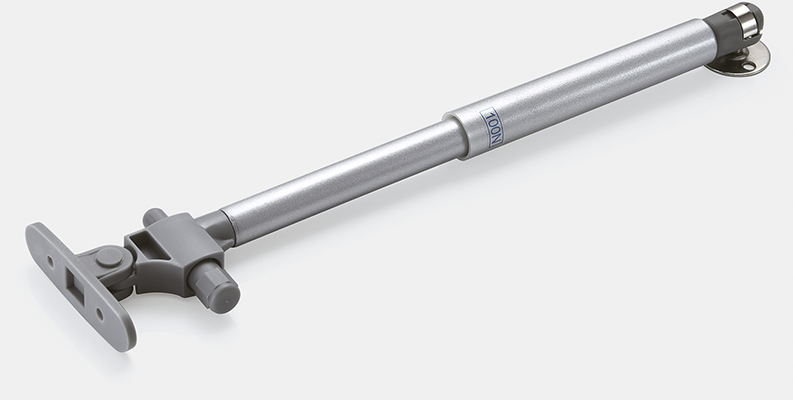

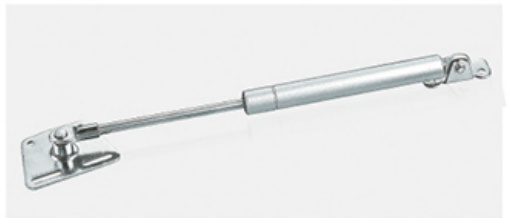

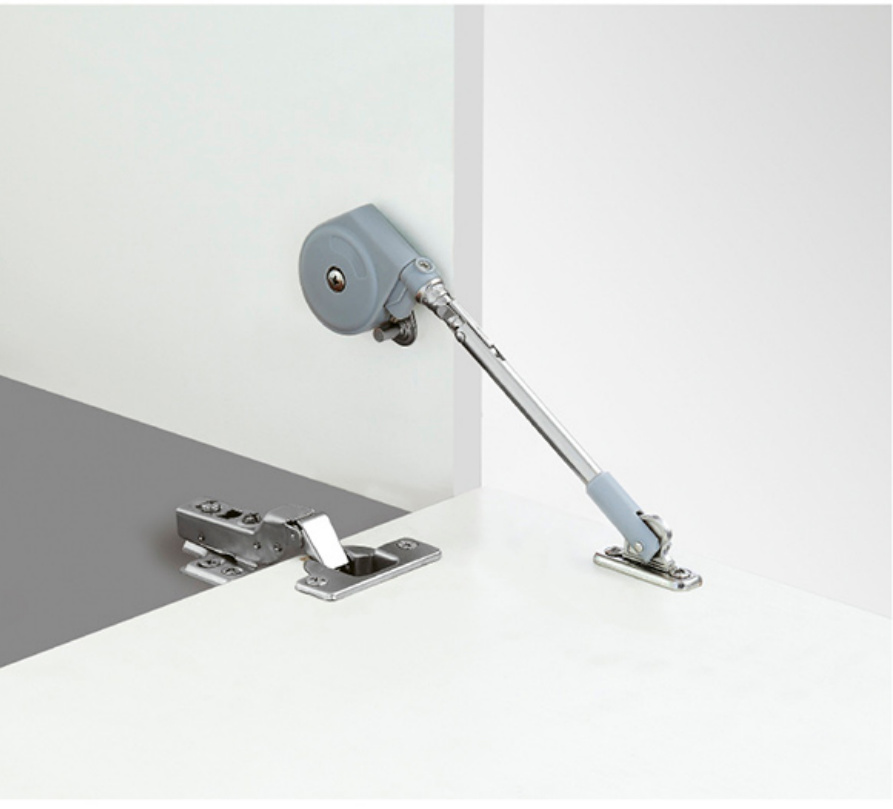

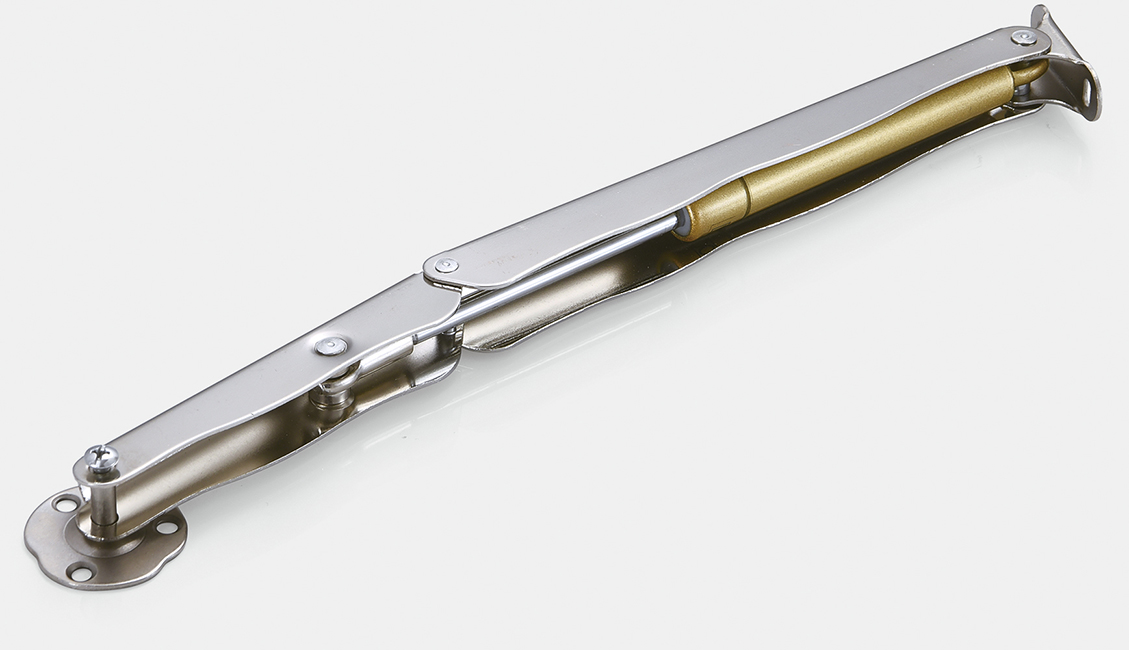

Wall cabinets with a door that opens upward need a stay. For small flaps 150 to 300 mm high, the folding damped stays 7534 (up-flap) and 7533 (down-flap) give 50 to 70 N and a soft landing. For full-size wall-cabinet doors 330 to 500 mm high the 7532 mechanism replaces the hinges entirely: it holds the door at any angle, closes softly from 25° and is chosen by torque, which is door height times door weight. The 7206 and 7525 are free-stop stays for lighter doors; the 7201 and 7203 are plain gas springs rated 80,000 cycles. Ottoman beds and storage benches use the 7453, 7416 and 7417, which damp a heavy lid over its whole travel.
Questions distributors ask.
How do I choose the 7532 lift-up mechanism?
Multiply the door height in mm by the door weight in kg (including the handle). Pick the torque band that contains the result: 1200–1800, 1700–2250, 2100–3100 or 2500–4000 kg·cm.
Do the folding stays need a hinge as well?
Yes. The 7534 and 7533 work alongside a normal cup hinge; the 7532 mechanism replaces the hinges.
Can the stays be fitted left or right?

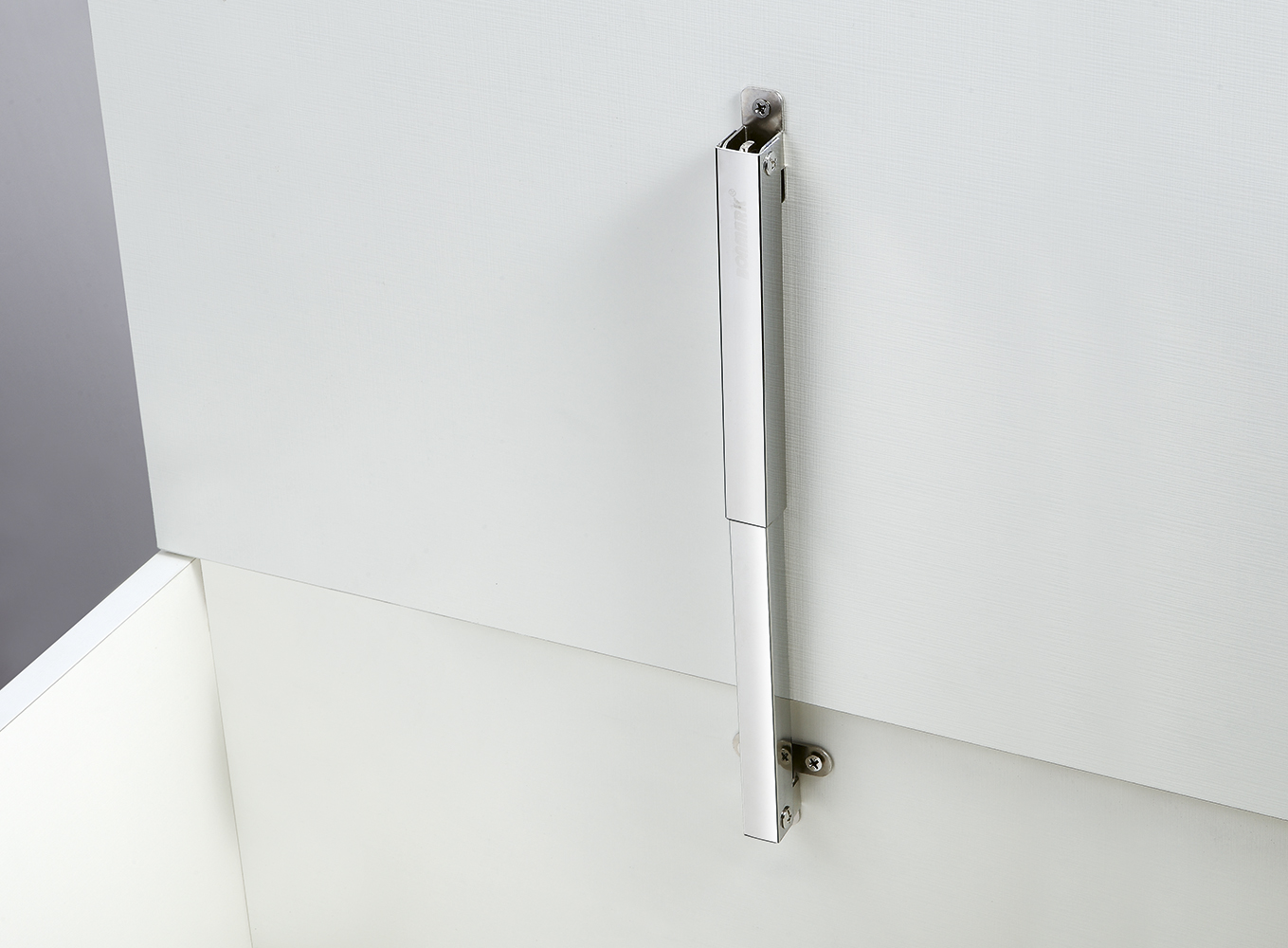

The 7534, 7533 and 7453 fit either side. The 7417 is front-mounted and cannot be used with inset (full-crank) hinges.
What is the minimum order?
One carton: 100 stays for the folding and gas-spring types, 10 pairs for the 7532, 60 for the 7453.
Do you have gas springs for glass or aluminium-frame doors?

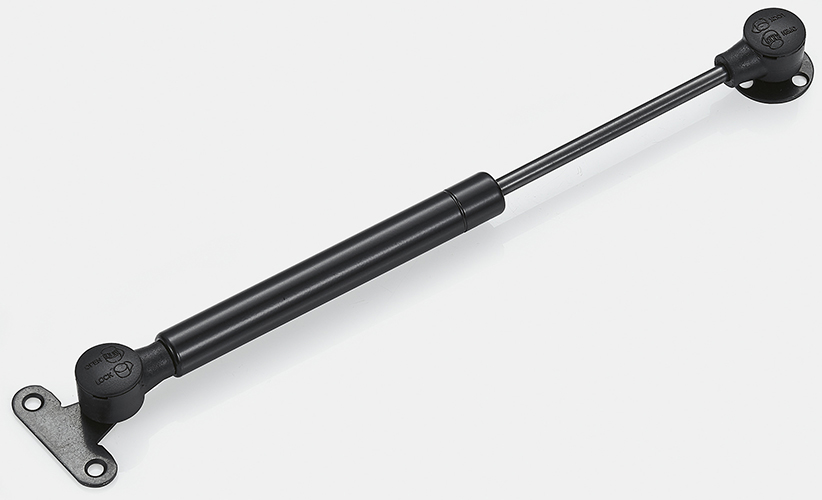

Yes, the 7203 in black is made for aluminium-frame lift-up doors up to 3.2 kg.
