Cabinet hinges · Soft-close cup hinges

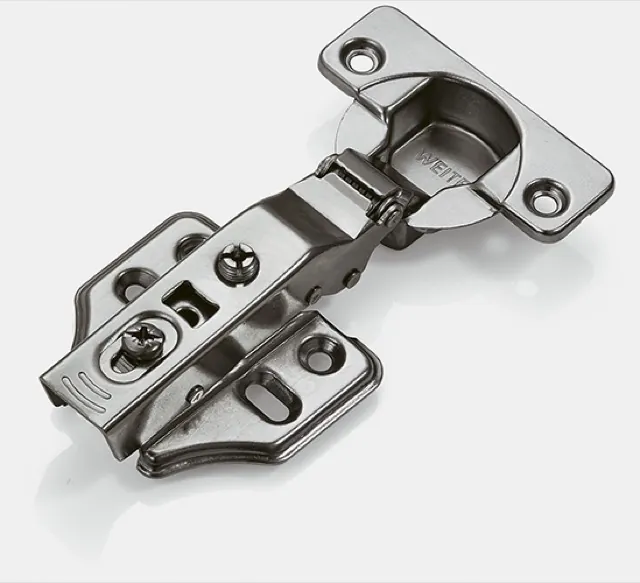

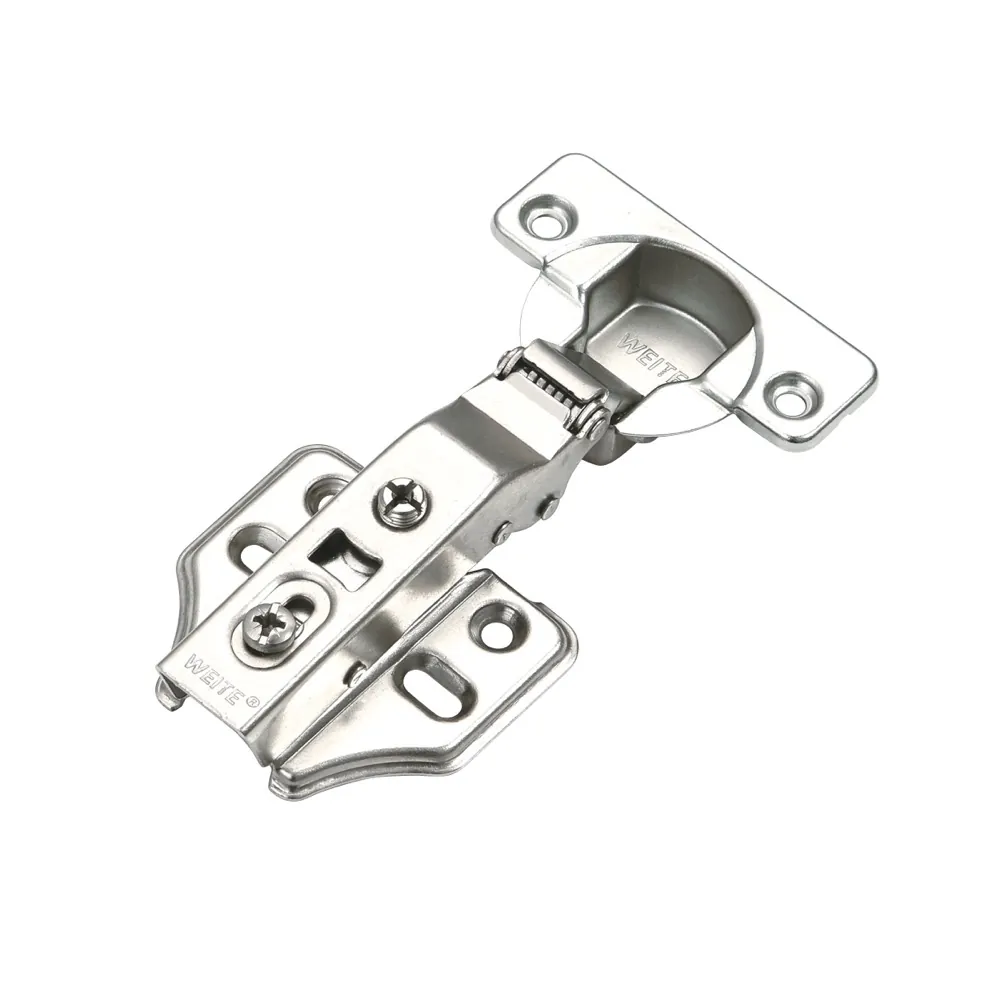

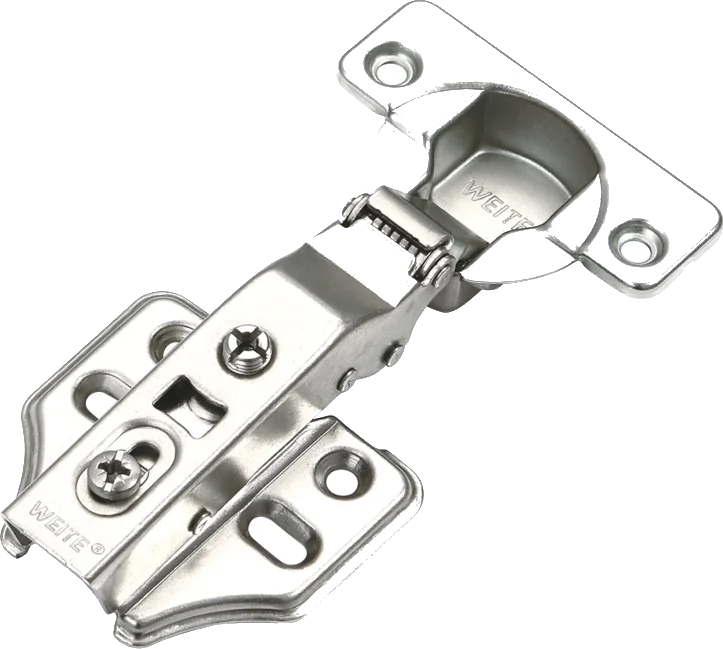

Titanium-finish 3-stage soft-close hinge
Model 6913Best sellerThick & thin doors
- Opening angle105°
- Door thickness16–28 mm
- CupØ35 mm × 12 mm deep
- Adjustment±2 / ±2 / ±4 mm
- ClosingHydraulic soft close, 3-stage
- FinishTitanium finish on cold-rolled steel
Order numbers 6913 0309 / 0308 / 0307 for full overlay, half overlay and inset. 2 pcs per bag with screws and arm cover; 200 pcs per carton; minimum one carton.
| Door thickness | 16–28 mm (thick and thin doors) |
|---|---|
| Opening angle | 105° |
| Cup diameter | 35 mm |
| Cup depth | 12 mm |
| Overlay adjustment (side) | +2 / −2 mm |
| Height adjustment | +2 / −2 mm |
| Depth adjustment | +4 / −4 mm |
| Spring | 3-stage: hold-open, free-swing, small-angle soft close |
| Damper | Hydraulic, small-angle soft close |
| Mounting | Fixed mount, screw-on arm |
| Material | Cold-rolled steel |
| Finish | Titanium finish (titanium-alloy plating) |
| Salt spray | 96 h neutral salt spray (titanium-finish series, WEITE testing centre) |
| Cycle test | 50,000+ open-close cycles (soft-close series) |
| Weight | 93 g per hinge |
| Included | Screws, arm cover |
Source: WEITE product catalogue p. 007 and dealer price list 2026-04.
| Order number | Overlay | Arm |
|---|---|---|
| 6913 0309 | Full overlay | straight arm |
| 6913 0308 | Half overlay | half-crank arm |
| 6913 0307 | Inset | full-crank arm |
Same hinge, same price band: only the arm crank changes.
| Bag | 2 pcs per bag, with screws and arm cover |
|---|---|
| Inner box | 100 pcs |
| Carton | 2 inner boxes · 200 pcs |
| Net weight per carton | about 18.6 kg (calculated from 93 g per hinge) |
| Minimum order | 1 carton (200 pcs) per order number |
| Lead time | Stock items 7 to 15 days, made-to-order 25 to 35 days, counted from the deposit. |
| Private label | Brand the hinge cup, the arm cover, the bag and the carton. Logo on the hinge cup from 5,000 pcs per model, on the arm cover from 10,000 pcs per model; printed bags from 30,000 sets, printed cartons from 100 cartons. Private-label orders take about 10 days longer. |
| Specification sheet (PDF) | Generated from this page's data at launch. |
|---|---|
| Installation drawing |  105° opening, 72 mm arm reference, H and T marked (2026 catalogue). |
Related hinges.

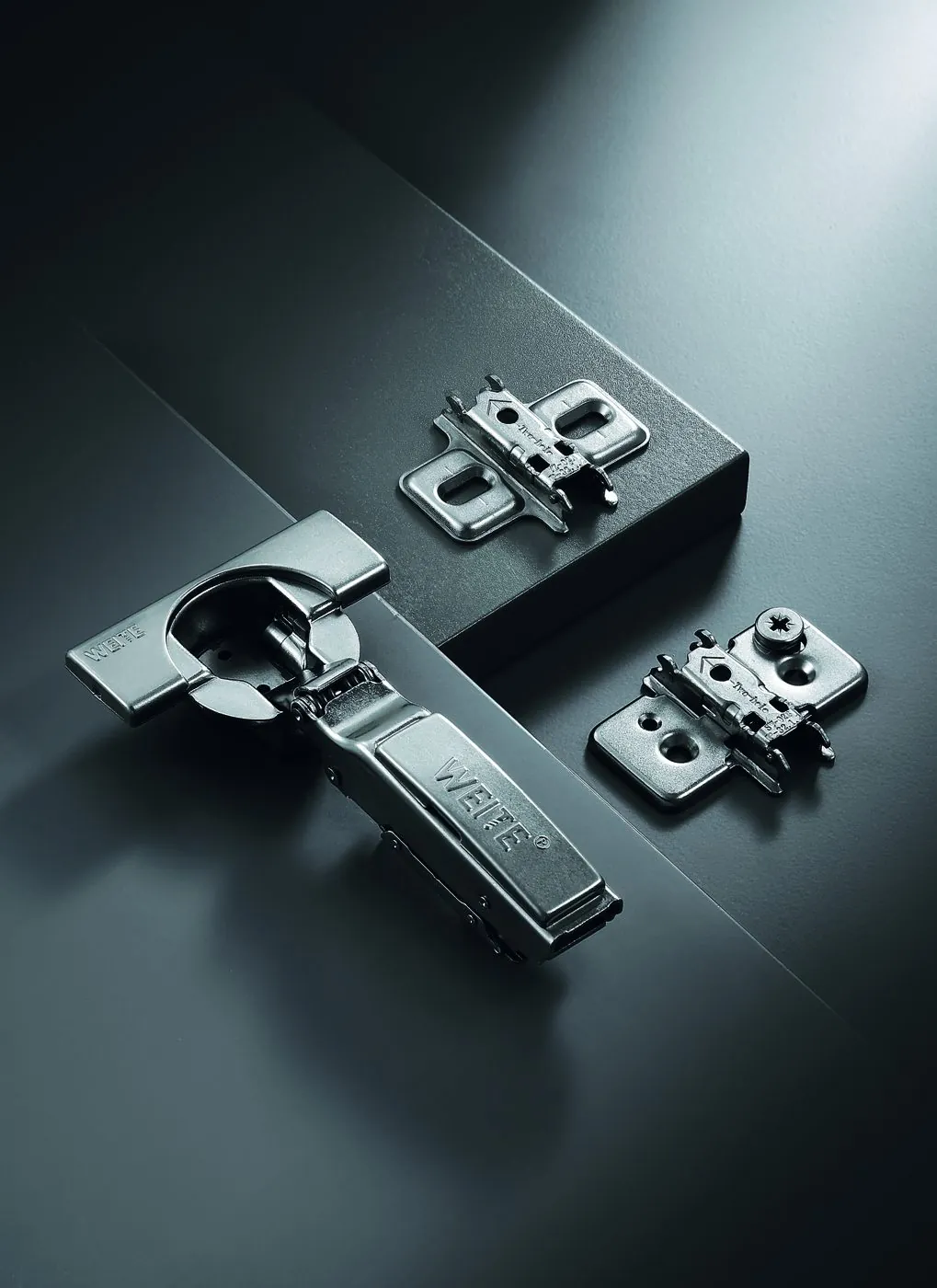

6931New generation
Quick-mount cup-damper hinge, 3-stage, titanium finish
- Clip-on, tool-free
- 16–25 mm doors
View details ›

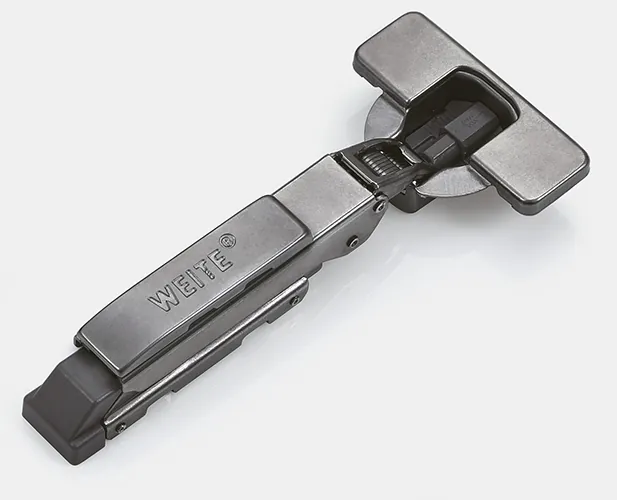

6921Thick & thin doors
Titanium-finish external-damper hinge, 2-stage
- 105° opening
- 16–28 mm doors
View details ›

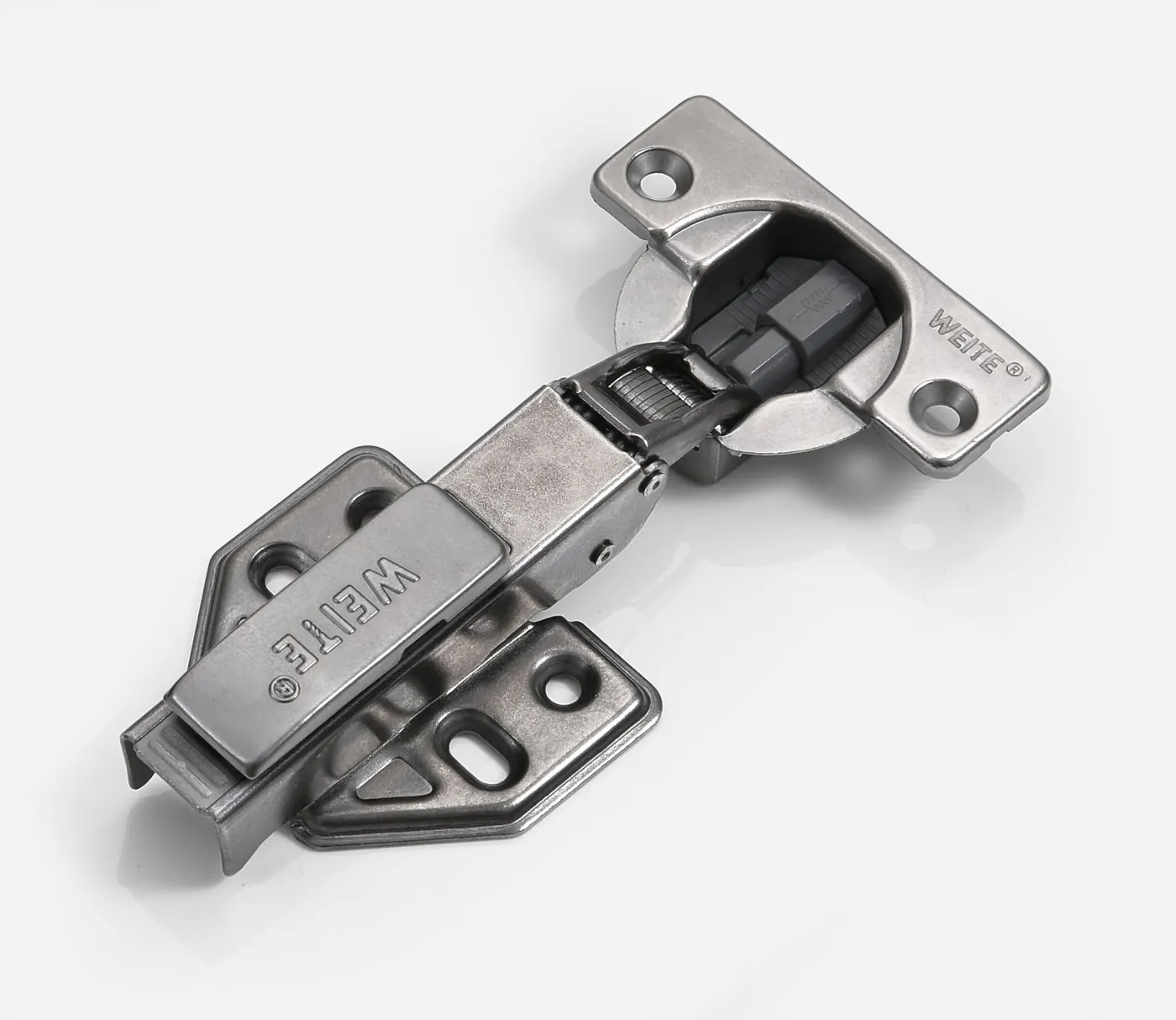

6914Thick & thin doors
