Cabinet hinges · Soft-close cup hinges

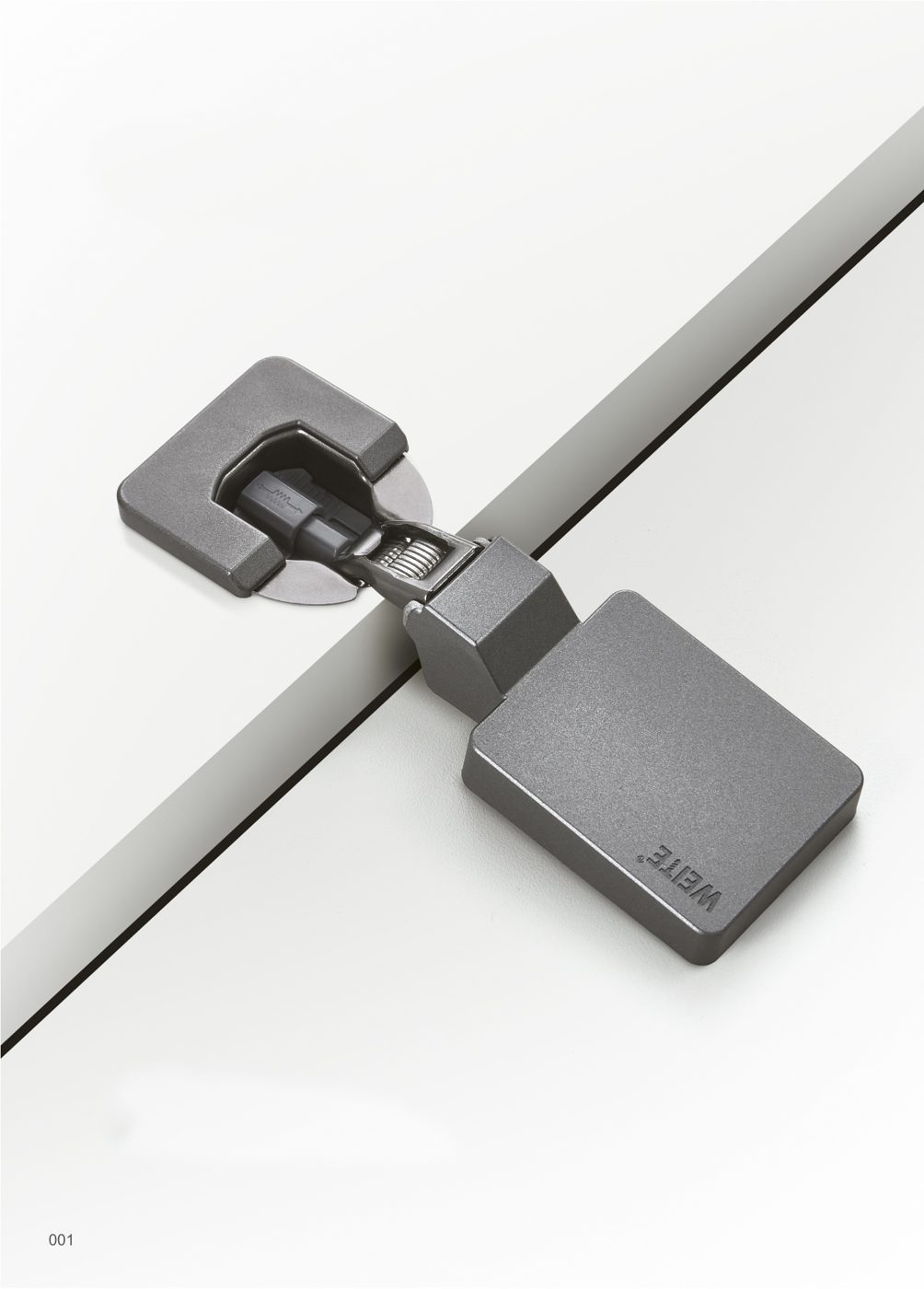

Ultra-slim hinge, fixed mount
Model 6918Slim
- 105° opening
- 16–28 mm doors
- Ø33.5 mm cup, 11.6 mm deep
- Ultra-slim arm, 10 mm high, 131 mm long
- Fixed mount
- Titanium-finish plating
Packing: 100 pcs / carton. Minimum order one carton per order number. 3 order numbers listed under Variants.
| Type | Soft-close cup hinges |
|---|---|
| Door thickness | 16–28 mm |
| Opening angle | 105° |
| Cup diameter / drilling | 33.5 mm |
| Cup depth | 11.6 mm |
| Overlay adjustment (side) | +2 / −3 mm |
| Height adjustment | +2 / −2 mm |
| Mounting | Fixed mount (screw-on) |
| Material | Cold-rolled steel |
| Finish | Titanium-finish plating |
| Included | Screws, decorative cup cover (1 pc per bag) |
| Overall length | 131 mm |
| Arm height | 10 mm |
Sources: dealer price list 2026-04.
| Order number | Variant / size / colour |
|---|---|
| 6918 0307 | inset |
| 6918 0308 | half overlay |
| 6918 0309 | full overlay |
| Packing | 100 pcs / carton |
|---|---|
| Minimum order | One carton per order number |
| Lead time | Stock items 7 to 15 days, made-to-order 25 to 35 days, counted from the deposit. |
