Drawer slides · Undermount concealed slides

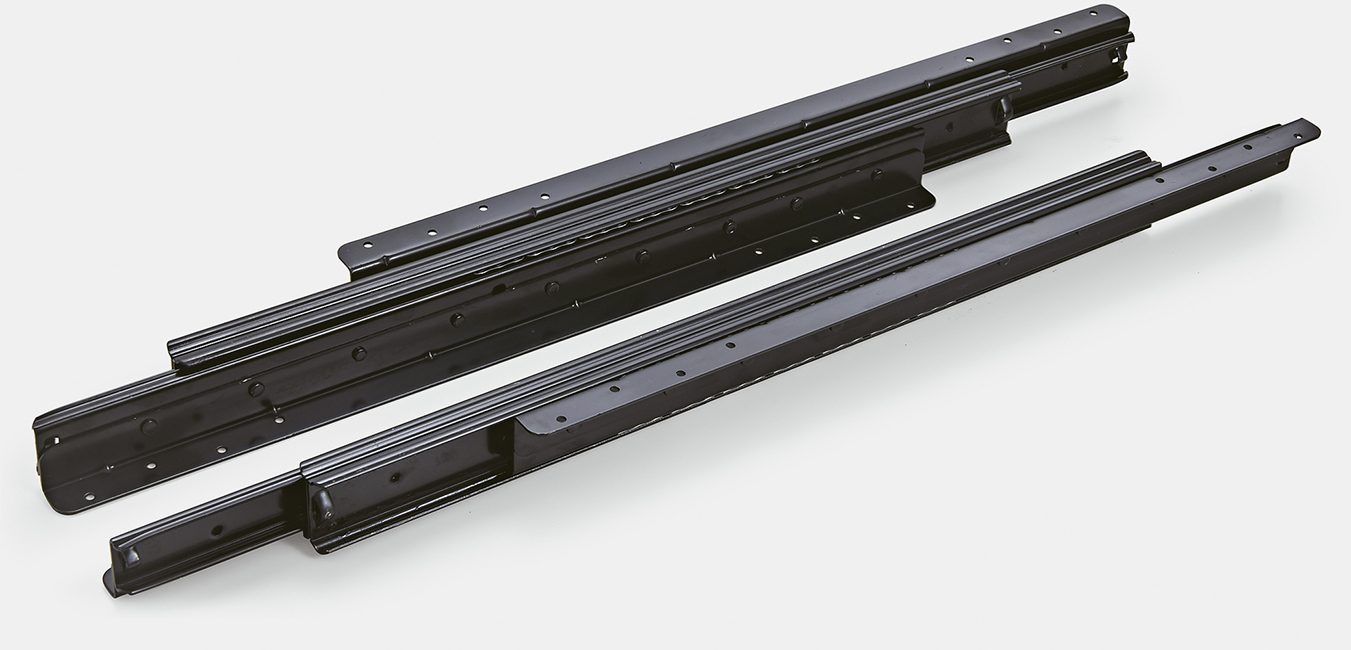

Heavy-duty three-section undermount slide for stair and tall units
Model 7451Heavy duty
- 120 kg per pair
- Steel 2.0 × 2.0 × 2.0 mm
- Extension 300–1250 mm
- Cabinets up to 2 m high, 400–600 mm wide
Packing: 10 pairs / carton. Minimum order one carton per order number. 8 order numbers listed under Variants.
| Type | Undermount concealed slides |
|---|---|
| Cabinet width | 400–600 mm |
| Material | Cold-rolled steel, electrophoretic coating |
| Lengths | 7451: 16" / 24" / 32" / 40" rails, extension 300–1250 mm |
| Load capacity | 120 kg per pair |
| Width | 600 mm wide |
| Steel thickness | Steel 2.0 × 2.0 × 2.0 mm |
Sources: dealer price list 2026-04.
| Order number | Variant / size / colour |
|---|---|
| 7451 1001 | 40"/extension900mm |
| 7451 1002 | 40"/extension1250mm |
| 7451 8001 | 32"/extension700mm |
| 7451 8002 | 32"/extension1050mm |
| 7451 6001 | 24"/extension500mm |
| 7451 6002 | 24"/extension850mm |
| 7451 4001 | 16"/extension300mm |
| 7451 4002 | 16"/extension500mm |
| Packing | 10 pairs / carton |
|---|---|
| Minimum order | One carton per order number |
| Lead time | Stock items 7 to 15 days, made-to-order 25 to 35 days, counted from the deposit. |
