Drawer slides · Undermount concealed slides

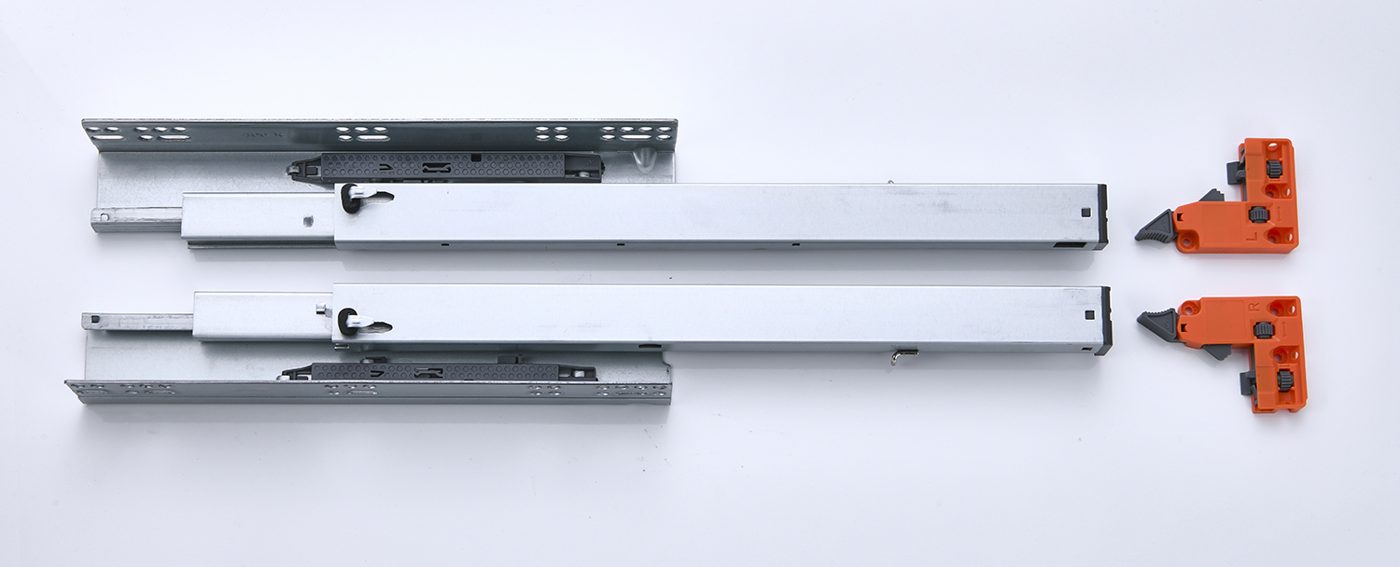

Three-section synchronised push-open undermount slide
Model 7003
- Push to open, no handle
- Steel 1.8 × 1.5 × 1.0 mm, 35 kg
- 16 / 18 mm drawer sides
- Tool-free drawer release
Packing: 10 pairs / carton. Minimum order one carton per order number. 7 order numbers listed under Variants.
| Type | Undermount concealed slides |
|---|---|
| Load capacity | 35 kg |
| Height adjustment | 2–3 mm |
| Material | Galvanised steel sheet |
| Lengths | 250–550 mm |
| Steel thickness | Steel 1.8 × 1.5 × 1.0 mm |
| Closing | Push to open, no handle |
Sources: dealer price list 2026-04.
| Order number | Variant / size / colour |
|---|---|
| 7003 1210 | 250mm long/10" |
| 7003 1212 | 300mm long/12" |
| 7003 1214 | 350mm long/14" |
| 7003 1216 | 400mm long/16" |
| 7003 1218 | 450mm long/18" |
| 7003 1220 | 500mm long/20" |
| 7003 1222 | 550mm long/22" |
| Packing | 10 pairs / carton |
|---|---|
| Minimum order | One carton per order number |
| Lead time | Stock items 7 to 15 days, made-to-order 25 to 35 days, counted from the deposit. |
