Cabinet hinges · Aluminium-frame door hinges

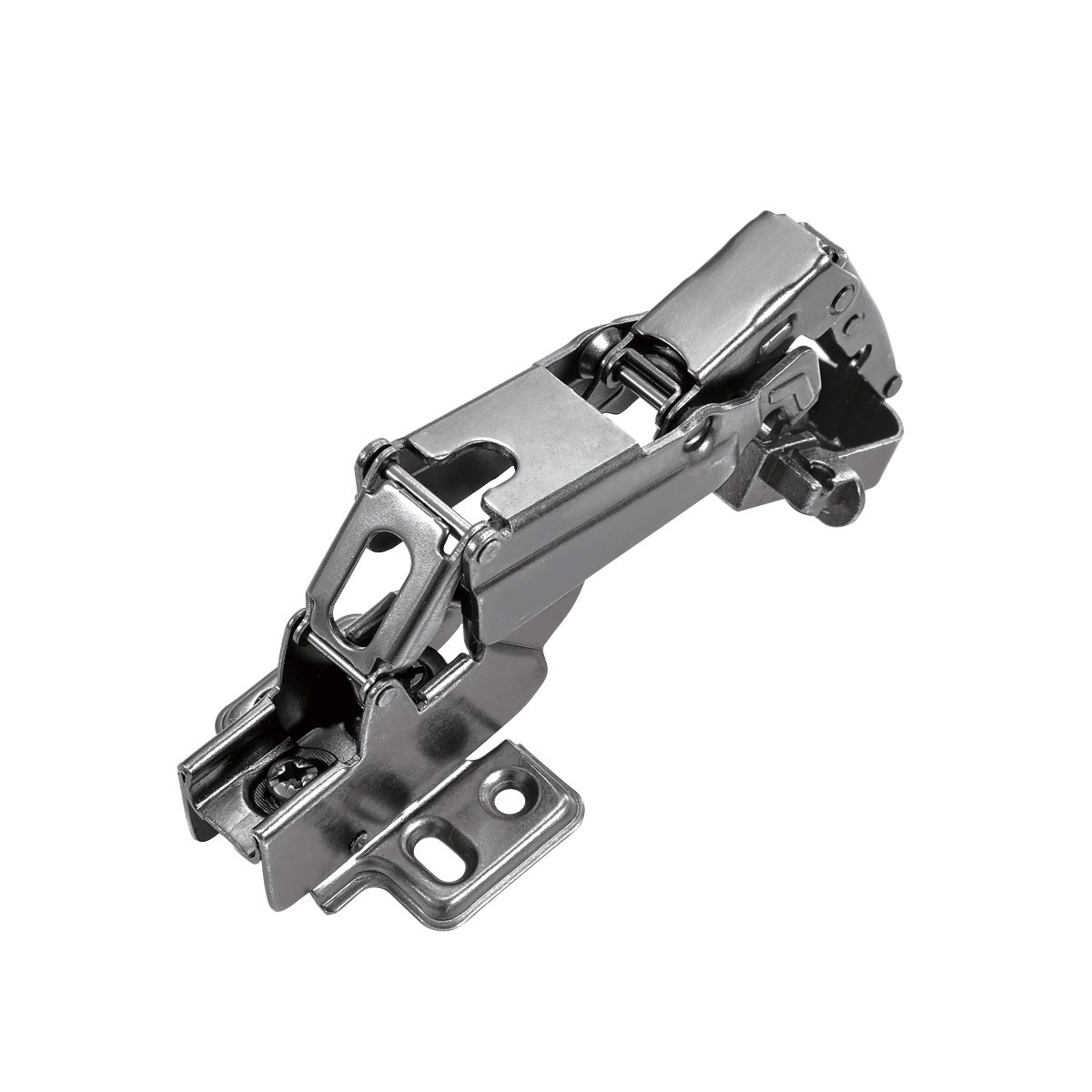

165° aluminium-frame soft-close hinge, round head
Model 7517
- Feature 1165° opening
- Feature 222–25 mm frames
- Feature 338 mm round-head drilling
- Feature 43D adjustment ±2 / ±2 / ±3 mm
- Feature 5Gunmetal
Packing: 200 pcs / carton. Minimum order one carton per order number. 3 order numbers listed under Variants.
| Type | Aluminium-frame door hinges |
|---|---|
| Door thickness | 22–25 mm frame |
| Opening angle | 165° |
| Cup diameter / drilling | 38 mm drill (round head) |
| Cup depth | — |
| Overlay adjustment (side) | +2 / −2 mm |
| Height adjustment | +2 / −2 mm |
| Depth adjustment | +3 / −3 mm |
| Spring | [to confirm] |
| Closing | Soft close |
| Mounting | Fixed mount (screw-on) |
| Material | Cold-rolled steel |
| Finish | Gunmetal |
| Included | Screws, arm cover |
Sources: dealer price list 2026-04 and WEITE product catalogue. Rows marked [to confirm] are completed by WEITE before launch.
| Order number | Variant / size / colour |
|---|---|
| 7517 0207 | inset/round head |
| 7517 0208 | half overlay/round head |
| 7517 0209 | full overlay/round head |
| Packing | 200 pcs / carton |
|---|---|
| Minimum order | One carton per order number |
| Carton size and weight | [to confirm] |
| Lead time | [to confirm] |
